Hydr. motor High press.

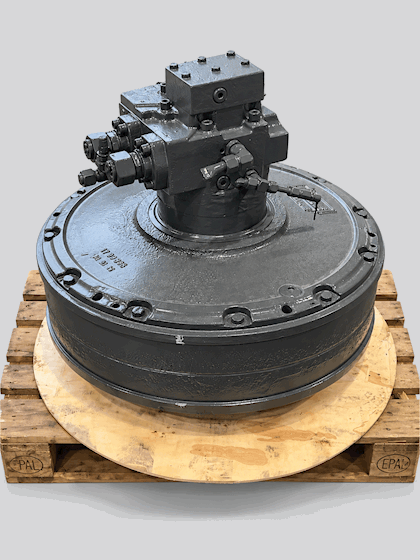

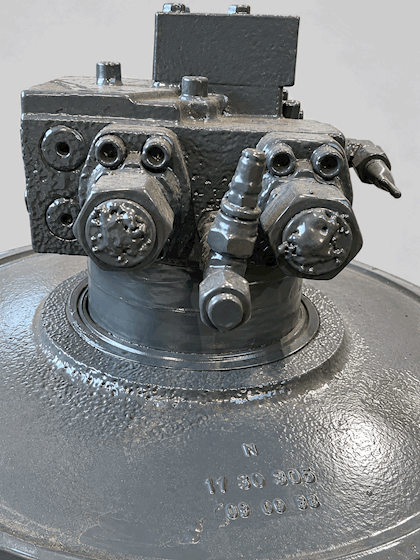

Hagglunds Viking MK63
Product no.: 22851
| Quantity in stock | 2 |
| New/Unused | Used |
| Bar | 320 bar |
| capacity | ~140 L/min |
| Engine producent | Hagglunds |
| Torque:max | 63 Nm/bar |
Description
Parameter Specification Torque 63 Nm/bar Max Continuous Working Pressure 215 to 275 bar Max Peak Pressure 320 bar Rated Speed 80 rpm Max Operating Speed 120 rpm Max Free-Running Speed 400 rpm Average Weight ~340 kg (750 lbs) Oil Flow Capacity ~140 L/min Efficiency 97% Starting and Mechanical Efficiency
