High Pressure Winch & Netdrums
ACE Winches 1 x ACE SMW-20 Mooring winch
Product no.: 3057
| Serie nr. | 338/343 |
| Quantity in stock | 1 |
| Pull 1. Layer (Kg) | 16000 |
| Brakes | Hydr. |
| Number of drums | 1 |
| Height | 1553 |
| Length | 2465 |
| Width | 1825 |
| Weight (kg) | 4,5 tonne each |
| Motor displacement (Ccm) | 16 |
| Drum length mm | 1000 |
| Drum dia. mm | 1100 |
| Core dia. mm | 560 |
| Total length incl. motor(s) mm | 2465 |
| Level winder | Yes, Under Spooling |
| Wire capacity | 700 m |
| Wire Dimension | 30 mm |
| Storage location | Grusplads |
| Engine Type | Hägglunds Viking |
Description

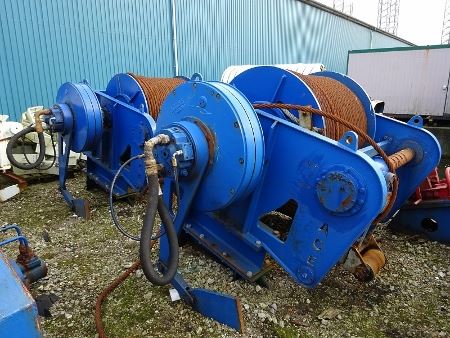

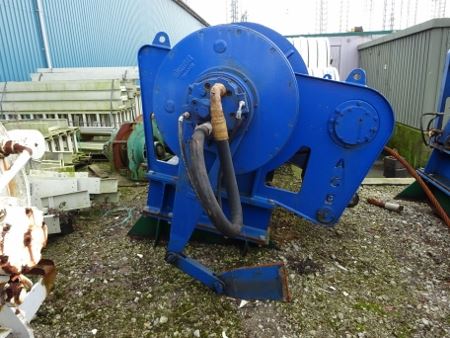

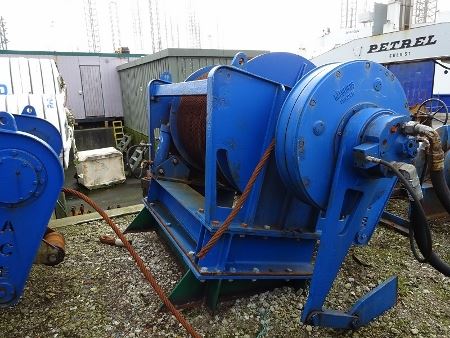

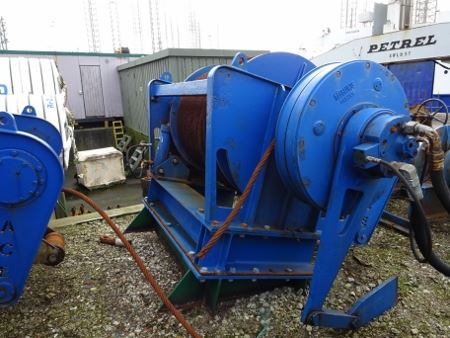

1 x ACE Mooring winch in good condition, ready for operation. The winch are fitted with Hydr. operated brake band, and underspooling guide-on gear / Level winder. Presently layout for 32 mm wire. Base frame fitted underneath, making the winch ready for installation. Can be seen and tested against prioir agreement.
